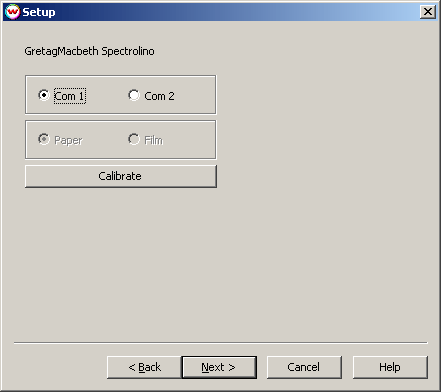

The Setup screen is used to select the port for your device and calibrate your device.
The Calibrate button will initiates the calibration sequence for the Spectrolino. Calibration is not necessary to begin reading values; however, the accuracy of these measurements can be greatly affected by a mis-calibrated device. When you click on Calibrate, the following screen will be displayed:

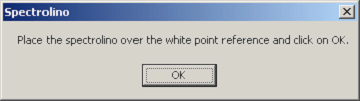

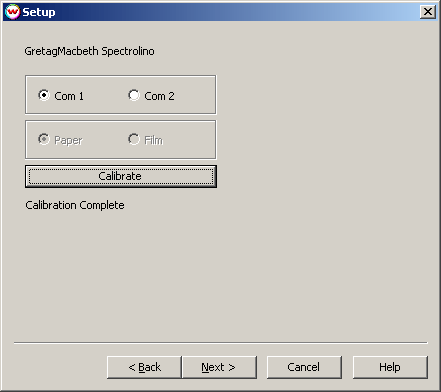

Make sure that the lens of the Spectrolino is directly over the white point reference, and click on the OK button. The window should then display the message: 'Calibration Complete'.
To proceed to the next step, click on the Next button, which will launch the following screen:

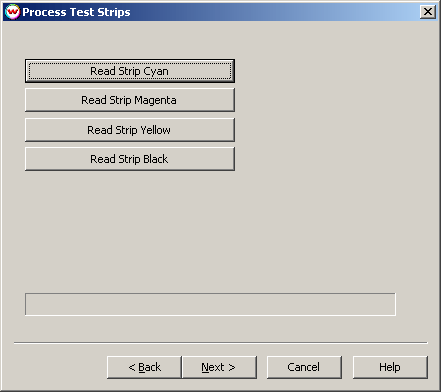

The Process Test Strips screen begins the strip reading process. To begin reading a strip, click on the button associated with the color you wish to read. Then follow the instructions presented in the message box directly below the Read Black Strip button. This interface is "hard-wired" to except the 17 data points used in the file 'dtp32.ps' which is located in your 'X:\psfiles' folder (X: being the letter of the drive on which Wasatch is installed). This is the only test pattern that will provide accurate results.
After the densitometer has returned the strip values, the 'Done' message will appear next to the color you selected. After each strip has been read, the Next button will change to Finish. You may select Finish after reading any number of the four strips to apply curves from only colors that you have measured. Colors that you did not measure will not be overwritten should curves already exist.
