Epson Stylus Pro 11880

Print Mode

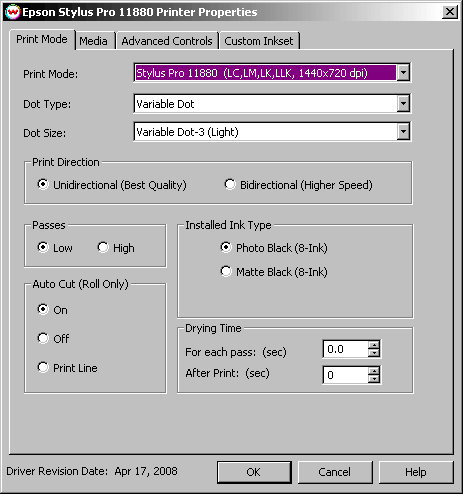

• Print Mode: Select the inks and printing resolution
• Dot Type: Select from Fixed or Variable dot types. When the print mode is changed this selection will default to the suggested dot type (usually variable)
• Dot Size: Select the size of the dot
  • Fixed modes: The following are the available dot sizes. Each of these dot sizes are available at all resolutions except for 2880x1440 and 2880x2880.
    • Fixed - 3.5pl
    • Fixed - 5.9pl
    • Fixed - 7pl
    • Fixed - 12.5pl
    • Fixed - 15pl
    • Fixed - 20.8pl
  • Variable modes: There are three choices for variable dot sizes available for all resolutions except 2880x1440 and 2880x2880. When the print mode is changed this selection will default to the suggested variable dot size for the selected resolution.
    • Variable Dot-1 (Dark)
    • Variable Dot-2 (Medium)
    • Variable Dot-3 (Light)
• Print Direction: Print in one direction for the best quality (Unidirectional) or in both directions for higher speed (Bidirectional)
• Passes: At a resolution of 1440x720 this control will be active. Choose "High" for a better quality and low for better speed.

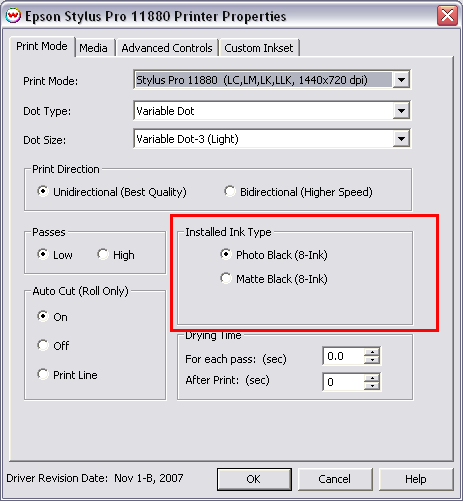

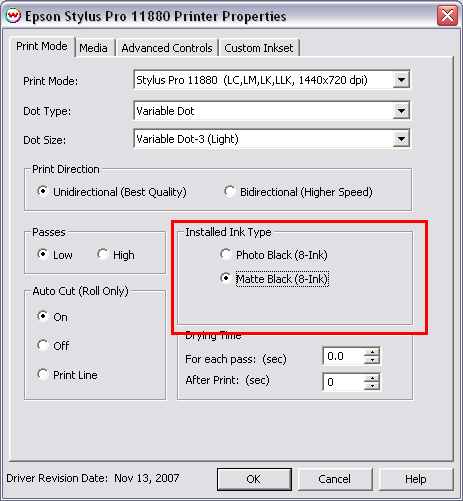

• Ink Type:
  • Photo Black (8-color) supports the most general use and is best for glossy papers
  • Matte Black (8-color) Not recommended for glossy/semi-glossy media
• Auto Cut: Select whether to cut the image or print a line in order to cut by hand later on
• Drying Time:
  • Each Pass: Time Between Passes allows you to set a drying time between each pass. This is especially useful when printing on film.
  • After Print: Set a drying time after the print has completed. Cutting will commence after the set drying time.

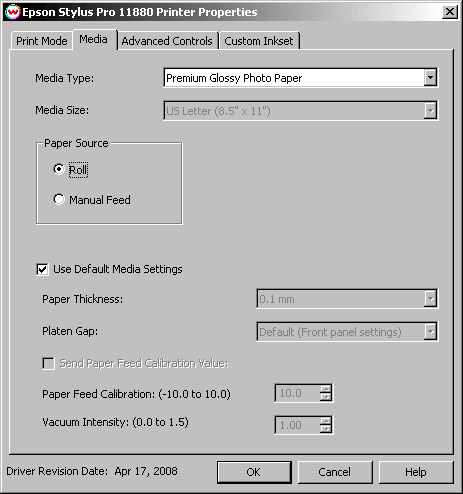

• Media Type: Choose from a list of approved Epson media. If your media is not in the list, choose the closest match. If there is nothing close, choose "Third Party Media" and the Media Settings will be available to fine tune the parameters
• Media Size: Choose from a list of media sizes. If nothing matches, choose "User Defined" and set the size in the "User Defined Paper Size" box.
• Paper Source Select the feed source for the media. The paper tray selection does not exist on the 7800 and 9800.
• Use Default Media Settings Uncheck to have full control over media settings

  • Paper Thickness
  • Platen Gap
  • Send Paper Feed Calibration Check to send a value for a media feed calibration
  • Paper Feed Calibration
    To find the Paper Feed Calibration Value:
    • Print a line that is 1000 mm long in the paper feed direction
    • Measure the actual printed distance
    • Enter the difference in millimeters. For example, enter -5 if a measurement of the print is a value of 995 mm
  • Vacuum Intensity Sets the suction intensity of the vacuum with 1.0 equal to 100 percent.

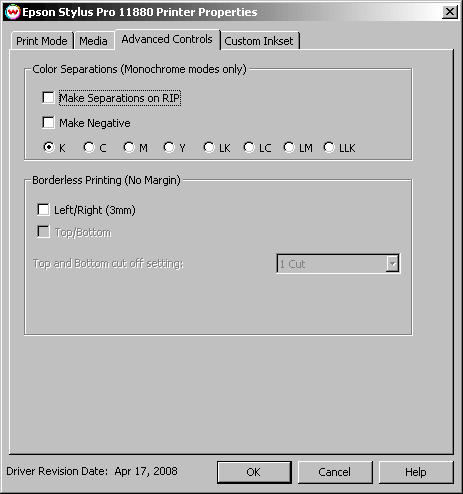

1. Marginless printing is only valid for the following media widths:
   • Epson Stylus Pro 11880
     (10", 13", 16", 17", 24", 36", 44", 50", 54")
2. User should make the horizontal width of the image 3mm wider on both the right and left edges (6mm total) of the image to avoid white area caused by media skew. These areas are printed off the edge of the paper on the absorbing pad on the platen. No automatic scaling or magnification is done by either SoftRIP or the printer.
   Note: You should have the paper width set to 6mm (.235") greater than the width of the paper. This may require first selecting the borderless printing option in the properties and secondly setting the paper width (or selecting Set Maximum Width) in the setup screen.
3. Top and Bottom cut off setting: Select the type of cut desired.
   1. 1-Cut: Performs a quick cut with minimum waste between pages, but it may be slightly off of horizontal.
   2. 2-Cut: Cuts the image perfectly, but wastes space between pages.

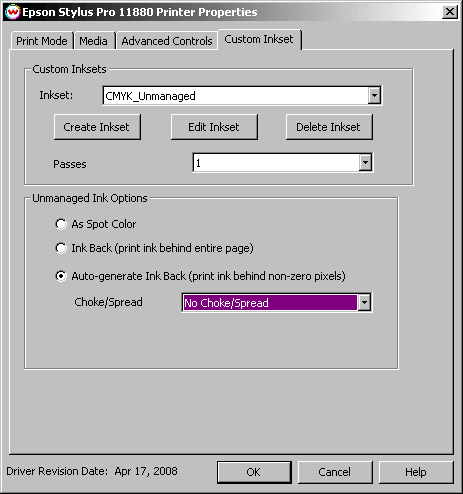

Custom Inksets, Passes, and Unmanaged Ink Options

• As Spot Color: Will only be printed when value is placed for channel as part of a Spot Color Replacement.
• Ink Back (print ink behind entire page): Will print unmanaged channel behind entire page.
• Auto-generate Ink Back (print ink behind non-zero pixels): Will only print unmanaged channel behind non-zero pixels in the image.
• Unmanaged Ink Density: Adjust the ink density used for the unmanaged channel.

Additional Notes for Custom Inksets

The Epson 11880 has 9 ink slots.  Only 8 of these can be used at any one time.   The default ink orders and types for this printer are as follows:

Inkset Creator Slot # Actual physical channel fired  in photo black mode 1 1 2 2 3 8 4 4 5 5 6 6 7 7 8 9 Please note that in Photo Black mode the ink in physical slot #3 does not get fired.

Inkset Creator Slot # Actual physical chanel fired in matte black mode 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 9 Please note that in Matte Black mode the ink in physical slot # 8 does not get fired.

The main changes here are that what ever is in the actual channel #9 will always correspond to inkset creator slot #8.  And whatever is in actual channels #3 and # 8 will always correspond to inkset creator slot #3.  (#3 or #8 will be determined  by the installed ink type setting on the drivers property page)

Here are some examples of possible inksets you could create and how to set them up.

8 Color inkset

Dual CMYK #1

Dual CMYK #2

Quad Black w/ Dual Light black and Dual Light light black

If you plan on switching between photo and black ink modes you should load slots #3 and 8# with the same ink.  (obviously this is not necessary if you are just staying in one of the modes)
