EPSON Stylus Pro 4000

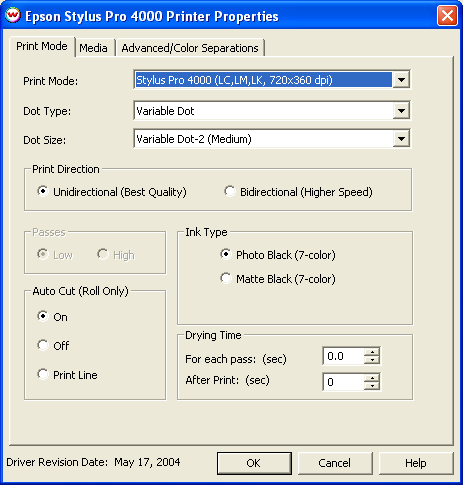

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch a control panel for this printer.

This page of the properties sheet allows you to select a print mode, the dot size, the print direction, passes, and time between passes.

• Print Mode: Select the inks and printing resolution
• Dot Type: Select from Fixed or Variable dot types. When the print mode is changed this selection will default to the suggested dot type (usually variable)
• Dot Size: Select the size of the dot
  • Fixed modes:
    • Fixed - 3.5pl (Lightest)
    • Fixed - 7pl
    • Fixed - 17pl
    • Fixed - 21pl
    • Fixed - 25pl
    • Fixed - 42pl (Darkest)
  • Variable modes:
    • Variable Dot-1 (Dark)
    • Variable Dot-2 (Medium)
    • Variable Dot-3 (Light)
• Print Direction: Print in one direction for the best quality (Unidirectional) or in both directions for higher speed (Bidirectional)
• Passes: At a resolution of 1440x720 this control will be active. Choose "High" for a better quality and low for better speed.
• Ink Type: (see below)
  • Photo Black (7-color) supports the most general use and is best for glossy papers
  • Matte Black (7-color) Not recommended for glossy/semi-glossy media
• Auto Cut: Select whether to cut the image or print a line in order to cut by hand later on
• Drying Time:
  • Each Pass: Time Between Passes allows you to set a drying time between each pass. This is especially useful when printing on film.
  • After Print: Set a drying time after the print has completed. Cutting will commence after the set drying time.

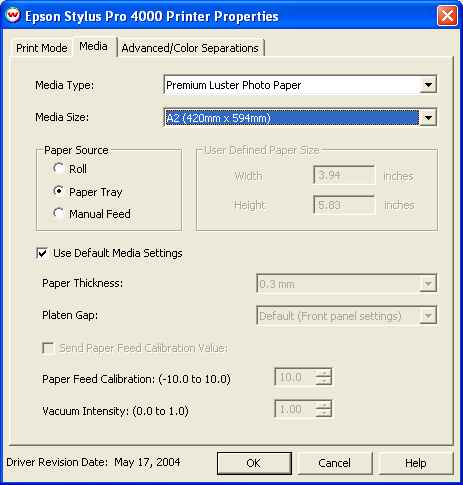

When you click on Media, the following properties page will be displayed:

The Media page controls media type, media size, the feed source and allows you to select options to fine tune the type of media installed.

• Media Type: Choose from a list of approved Epson media. If your media is not in the list, choose the closest match. If there is nothing close, choose "Third Party Media" and the Media Settings will be available to fine tune the parameters
• Media Size: Choose from a list of media sizes. If nothing matches, choose "User Defined" and set the size in the "User Defined Paper Size" box.
• Paper Source Select the feed source for the media
• Use Default Media Settings Uncheck to have full control over media settings
  Note: The front panel's custom paper setting must be set to "standard" for the following controls to work
  • Paper Thickness
  • Platen Gap
  • Send Paper Feed Calibration Check to send a value for a media feed calibration
  • Paper Feed Calibration
    To find the Paper Feed Calibration Value:
    • Print a line that is 1000 mm long in the paper feed direction
    • Measure the actual printed distance
    • Enter the difference in millimeters. For example, enter -5 if a measurement of the print is a value of 995 mm
  • Vacuum Intensity Sets the vacuum intensity ratio. Maximum intensity is at 1.0

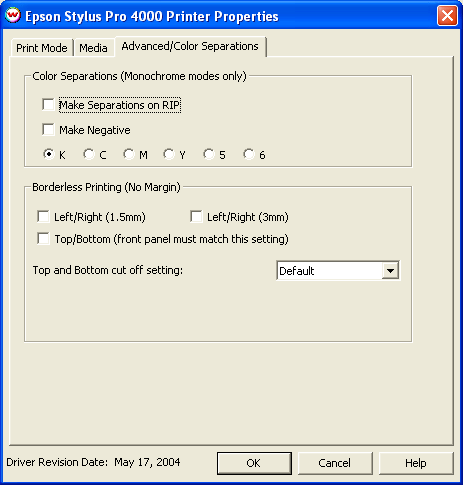

When you click on Advanced/Color Separations, the following Properties page will be displayed:

The Color Separations controls become active when a Monochrome mode is selected and Variable Dot is not selected.

Also on this tab are controls for the Epson 4000's Borderless Printing option. This option allows you to output prints without any margins or borders. This is done by overprinting and then cutting into the print for the top and bottom, and overprinting into pads inside the printer for the left and right sides.

Borderless Printing

1. Marginless printing is only valid for the following media widths:
   (8", 10", 12", 14", 16", 17", 210/257/297/300/329/400/420mm)
2. User should make the horizontal width of the image 1.5mm or 3mm wider on both the right and left edges of the image to avoid white area caused by media skew. These areas are printed off the edge of the paper on the absorbing pad on the platen. No automatic scaling or magnification is done by either SoftRIP or the printer.
3. Top and Bottom cut off setting: Select the type of cut desired.
   1. 1-Cut: Performs a quick cut with minimum waste between pages, but it may be slightly off of horizontal.
   2. 2-Cut: Cuts the image perfectly, but wastes space between pages.
